Explore Our Wide Range of Aqua Solar Categories
Introduction our new pressurized solar water heater with advanced vacuum tube technology. Our high solar absorption, low emission coating quickly converts solar radiation into heat and distributes it throughout the tank via heat pipes, gradually increasing the water temperature. Our vacuum tubes track the sun’s natural movement and work efficiently even in extreme cold regions. Enjoy hot water anytime with our innovative system.

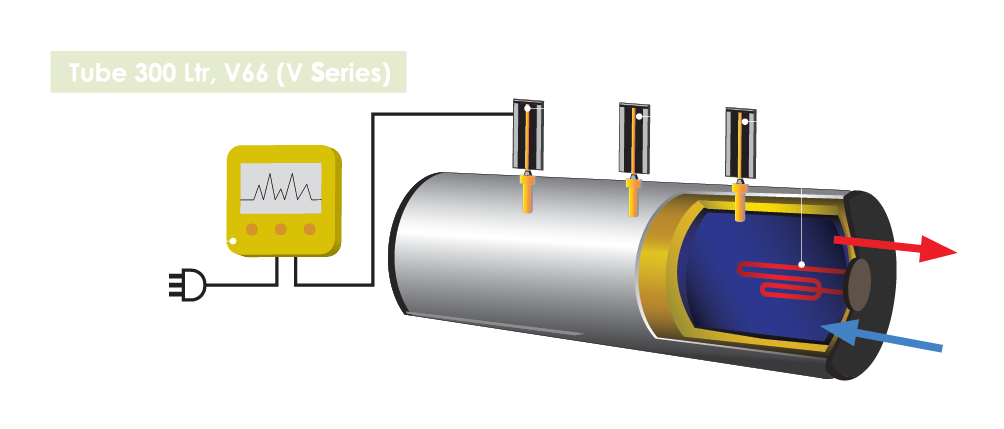

The V Series V66 is an evacuated tube solar heating system designed to operate efficiently in all weather conditions, making it a reliable option for solar water heating. This high-pressure solar water heating system can handle up to 6 bar pressure, connects to city water, and features a mechanically sealed tank and heat pipe for continued operation even if tubes break. The inner tank has undergone rigorous testing without any breakage, and the system is well-insulated with high-density polyurethane foam.
Vacuum Insulation absorbs solar radiation and converts it into heat.
A solar vacuum tube works similarity in design to a coffee thermos. It consists of a two-layer glass with a vacuum in between the layers. The outer layer of the solar tube is made of borosilicate glass, which has very low iron content and allows 98% of light energy to pass through.
| Vacuum Tube | Heat Pipe |
|---|---|
| Size: 1800 x 58 mm | Heat Pipe Tubes |
| High Borosilicate 3.3 Glass | 0.6 mm Thickness |
| Efficiency: 91% - 94% | 14 mm Condenser |
| Three-target Tubes | Anti-Freezing Function |
| Top Efficiency |
The A+ Controller is an intelligent controller for solar water heaters, specifically designed for integrated pressure solar energy systems. The controller features an LCD liquid crystal display, providing a beautiful appearance and ensuring stable and reliable performance. It is easy to install and has become the ideal accessory product for solar water heaters. With the Smart Controller, you can have a clear display of the water temperature. It is also intelligent enough to activate the backup heater below the set point in cases of excessive usage or during continuous rainy days.
| A+ Controller | Values |
|---|---|
| 3000W Controller Dimensions | 205 x 150 x 50 mm |
| Power Supply | AC100 - 240V, 50Hz |
| Power for Water Loading | <3W |
| Accuracy of Temperature Measuring | ±2°C |
| Range of Temperature Measuring | 0-99°C |
Titanium Rigid Solar Panel (ASTR series) heating systems are designed for any condition the Malaysia nature. ASTR series are made from Titanium which has great thermal properties which allow it to heat your water very quickly and it also can handle higher water temperatures.
The heater collector and the water tank can be assembled together according to the different type of house to meet the needs of various people.
The anti-freezer used in the collector cycle not only can prevent frostbite, but also can expand the using time. It has the most effective anti-freezing measure among the same products in domestic and abroad.
| ELECTRIC WATER HEATER | RM |
|---|---|
| Individual bathroom, bathroom only | |
| 6 persons • 15 minutes shower • 2 showers a day (180 minutes = 3 hours a day) • 3.8kW/hour x 3 hours = 11.4kW • 11.4kW x 30 days x 12 months = 4,104 kWh | |
| 3 electric water heaters (inclusive of installation, wiring & ELCB) x RM500 | 1,500.00 |
| Total for 10 years (RM0.516 x 4,104 kWh x 10 years) + RM1,500 = (Based on Average electricity rate tariff RM0.516 and assuing there's no increase in the electricity rate tariff) | 22,676.64 |
| AQUA SOLAR WATER HEATER | RM |
|---|---|
| Centralised hot water to every designated outlet in the house | |
| 6 persons • 15 minutes shower • 2 showers a day • 30 days (1 month) • Renewable solar energy (It's free) | |
| One - off installation for 10 years' use | 6,988.00 |

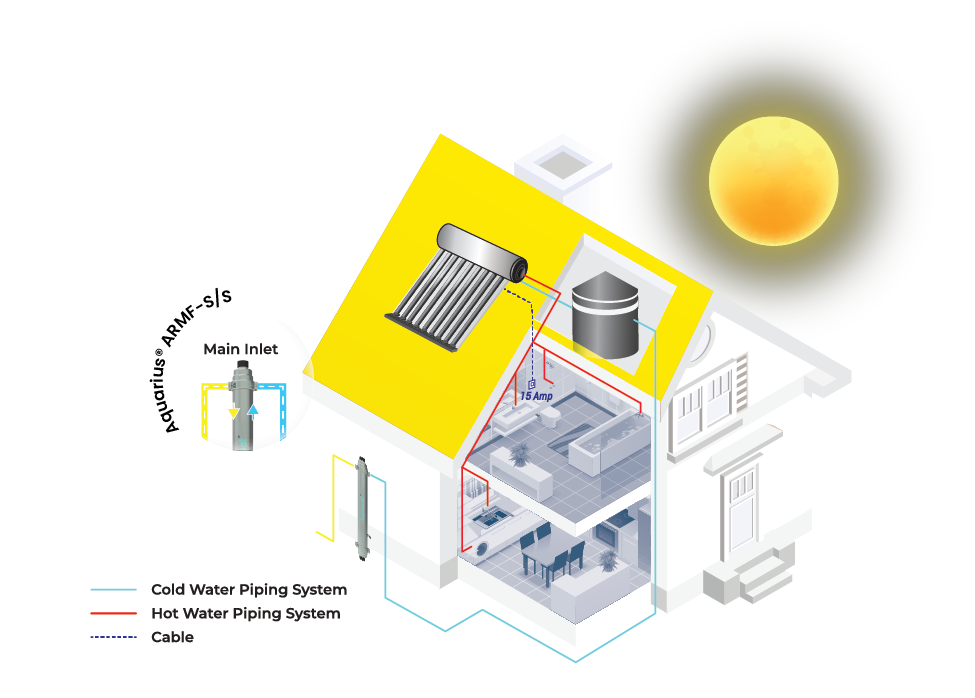

AquaSolar™ solar water heating systems uses the latest developments in solar technology to produce high quality, efficient water heaters for residential and commercial use. Thorough the years of experience, we understanding more of home owners’ needs and that result in the product’s functionality and efficiency. The products are designed and engineered to fully optimize the sun’s power in warming up water without shooting up the costs – it’s the perfect balance of technology and nature!
A range of 66 & 80 gallon models to suit your needs
About 70°C and safety feature of relief valve controls the heat pressures.

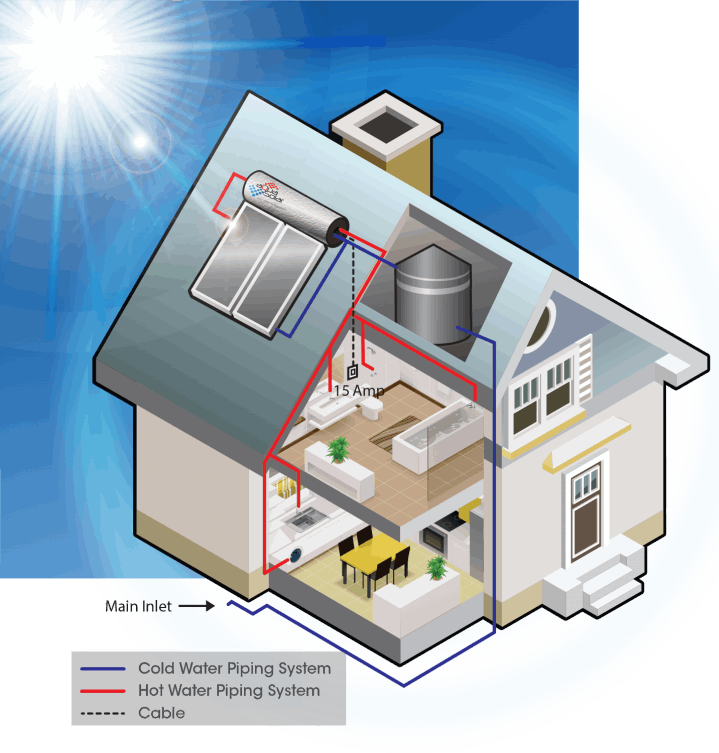

The L series uses Thermosiphon system in heating. The absorber collector is placed below the storage tank, from which cold water flows into the collectro where it is heated to a desired temperature. When sun is on the Solar Panel, the water in the panel is heated, becomes less dense and rises up into the Storage Tank. This continuous natural circulation of the water through the collector and tank heats the tank water over time, as flow stops as soon as the collector cold below the tank temperature.
Thermo-siphon auto-heating technology.
| ELECTRIC WATER HEATER | RM |
|---|---|
| Individual bathroom, bathroom only | |
| 6 persons • 15 minutes shower • 2 showers a day (180 minutes = 3 hours a day) • 3.8kW/hour x 3 hours = 11.4kW • 11.4kW x 30 days x 12 months = 4,104 kWh | |
| 3 electric water heaters (inclusive of installation, wiring & ELCB) x RM500 | 1,500.00 |
| Total for 10 years (RM0.516 x 4,104 kWh x 10 years) + RM1,500 = (Based on Average electricity rate tariff RM0.516 and assuing there's no increase in the electricity rate tariff) | 22,676.64 |
| AQUA SOLAR WATER HEATER | RM |
|---|---|
| Centralised hot water to every designated outlet in the house | |
| 6 persons • 15 minutes shower • 2 showers a day • 30 days (1 month) • Renewable solar energy (It's free) | |
| One - off installation for 10 years' use | 6,988.00 |
Crafting, Delivering, and Installing Your Clean Energy Future
With expertise spanning production, dealership, and installation, we’re uniquely positioned to cater to clients’ diverse hot water needs while adhering to their budgets.
