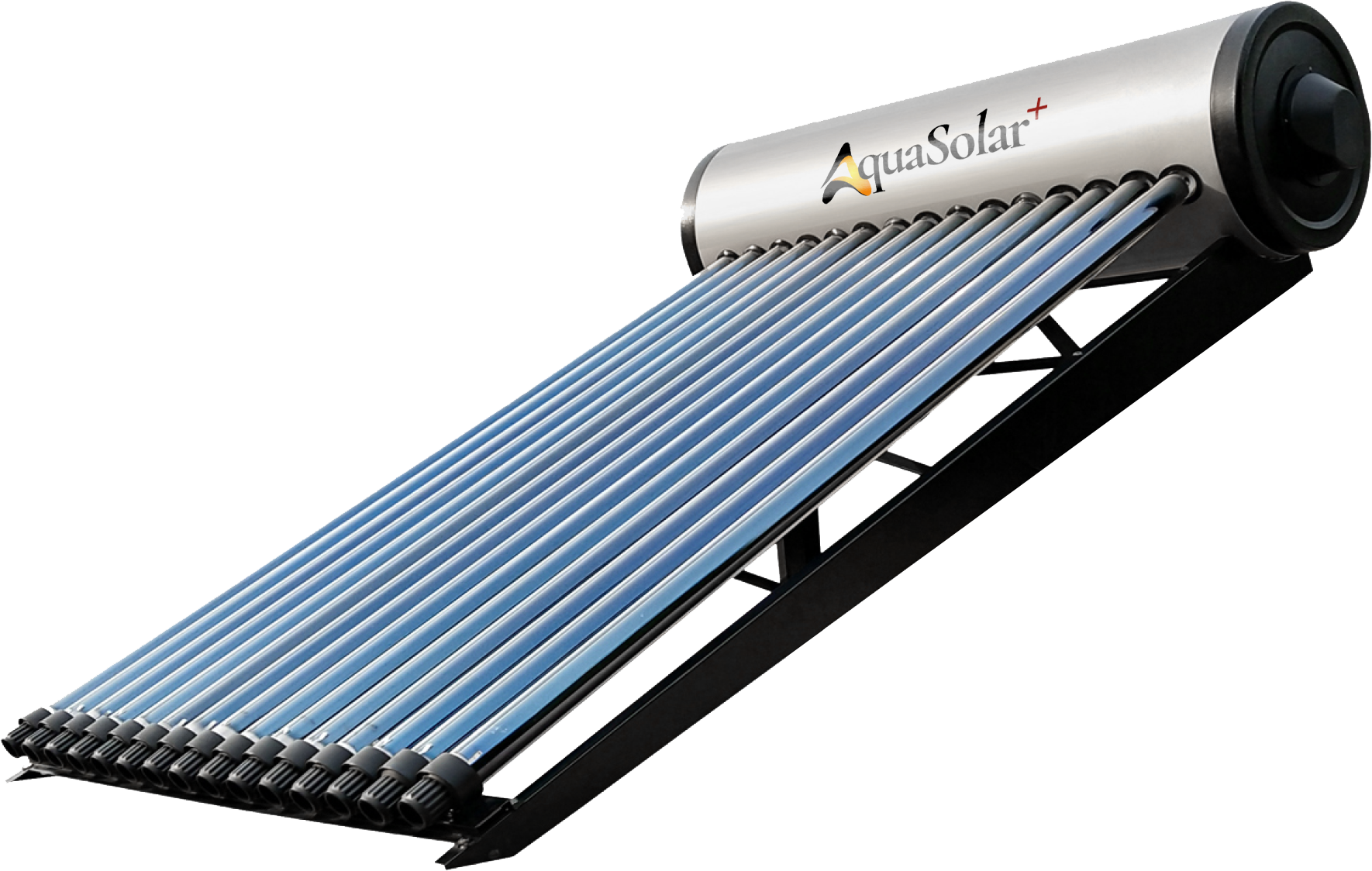

AquaSolar R Series- Evacuated Heat Tube Solar Water Heater
Experience the next generation of solar water heating with AquaSolar’s R300 / R66 Evacuated Heat Tube System.
Built with advanced vacuum tube technology, this pressurized solar water heater efficiently captures and transfers solar heat to deliver a stable and reliable hot water supply all year round—even in challenging weather conditions.
- Advanced evacuated heat tube technology
- High solar absorption with low-emission coating
- Efficient heat transfer via durable heat pipes
- Performs reliably even in cold or cloudy climates
- Energy-saving, robust, and long-lasting design
A powerful and eco-friendly solar hot water solution designed for superior performance, sustainability, and long-term savings.
R Series
AquaSolar R Series- Evacuated Heat Tube Solar Water Heater
Experience the next generation of solar water heating with AquaSolar’s R300 / R66 Evacuated Heat Tube System.
Built with advanced vacuum tube technology, this pressurized solar water heater efficiently captures and transfers solar heat to deliver a stable and reliable hot water supply all year round—even in challenging weather conditions.
- Advanced evacuated heat tube technology
- High solar absorption with low-emission coating
- Efficient heat transfer via durable heat pipes
- Performs reliably even in cold or cloudy climates
- Energy-saving, robust, and long-lasting design
A powerful and eco-friendly solar hot water solution designed for superior performance, sustainability, and long-term savings.
| Specification | |
|---|---|
| Warranty | 8 Years |
| Guarantee | 2 Years |
| Tank capacity | 300L |
| Tank size | 2350mm x 460mm |
| Tank weight | 45KG |
| Inner tank material | 304 S/S |
| Insulation | Polyurethane Foam |
| Working pressure | 6 Bar |
| Booster | 3kw / Dual Safety |
| System | Sealing system |
| Magnesium Bar | Yes |
| Pressurized | Yes |
| Controller | Optional |
| Daily hot water temperature | 45-90°C (sunny day) |
| Vacuum tube quantity | 22pcs |
| Vacuum tube size | 1800mm x 58mm |
| Glass Material | High Borosilicate 3.3 glass |
| Efficiency | 80% |

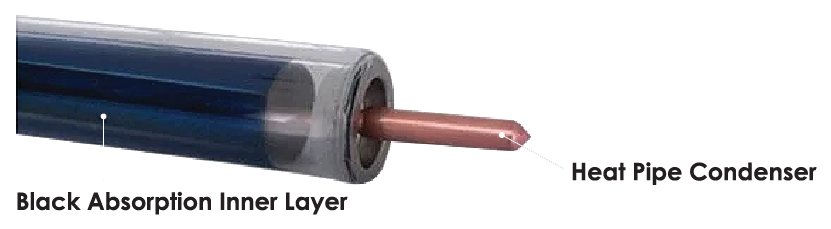

Vacuum Tube
A solar vacuum tube works similarity in design to a coffee thermos. It consists of a two-layer glass with a vacuum in between the layers. The outer layer of the solar tube is made of borosilicate glass, which has very low iron content and allows 98% of light energy to pass through.
| Vacuum Tube | Heat Pipe |
|---|---|
| Size: 1800 x 58 mm | Heat Pipe Tubes |
| High Borosilicate 3.3 Glass | 0.6 mm Thickness |
| Efficiency: 91% - 94% | 14 mm Condenser |
| Three-target Tubes | Anti-Freezing Function |
| Top Efficiency |
A+ Controller | Values |
|---|---|
| 3000W Controller Dimensions | 205 x 150 x 50 mm |
| Power Supply | AC100 - 240V, 50Hz |
| Power for Water Loading | <3W |
| Accuracy of Temperature Measuring | ±2ºC |
| Range of Temperature Measuring | 0 - 99ºC |

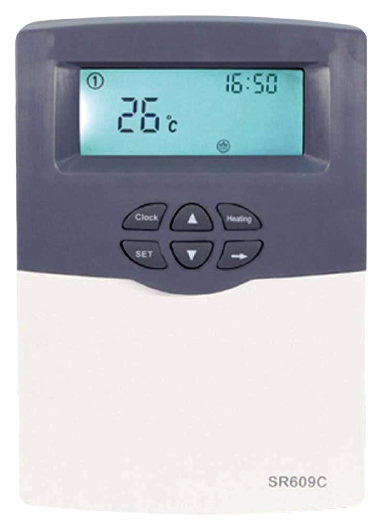

A+ Controller
The A+ Controller is an intelligent controller for solar water heaters, specifically designed for integrated pressure solar energy systems. The controller features an LCD liquid crystal display, providing a beautiful appearance and ensuring stable and reliable performance. It is easy to install and has become the ideal accessory product for solar water heaters. With the Smart Controller, you can have a clear display of the water temperature. It is also intelligent enough to activate the backup heater below the set point in cases of excessive usage or during continuous rainy days.
A+ Controller
The A+ Controller is an intelligent controller for solar water heaters, specifically designed for integrated pressure solar energy systems. The controller features an LCD liquid crystal display, providing a beautiful appearance and ensuring stable and reliable performance. It is easy to install and has become the ideal accessory product for solar water heaters. With the Smart Controller, you can have a clear display of the water temperature. It is also intelligent enough to activate the backup heater below the set point in cases of excessive usage or during continuous rainy days.
A+ Controller | Values |
|---|---|
| 3000W Controller Dimensions | 205 x 150 x 50 mm |
| Power Supply | AC100 - 240V, 50Hz |
| Power for Water Loading | <3W |
| Accuracy of Temperature Measuring | ±2ºC |
| Range of Temperature Measuring | 0 - 99ºC |
